Brand Name : Yiyuan
Certification : ISO 9001;ISO 14001;OHSAS 18001
Place of Origin : China
MOQ : 1KM
Price : Negotiation
Payment Terms : T/T, Western Union
Supply Ability : 500000km/month
Delivery Time : 30 working days after received your payment
Packaging Details : Wood coil strand
Product Name : Non Metallic Fiber Optic Cable
Number of Cores : 2-144 core
Jacket : PVC PE
OEM : Accepted
Application : Outdoor duct/outdoor cable/aerial/lashed
Number of Conductors : ≥ 10
Installation : Self-supporting Aerial
Fiber Type : Single mode
The fibers, 250μm, are positioned in a loose tube made of PBT, the tubes are filled with a water-resistant filling compound. Loose tubes filled with water proof compound to ensure compact and longitudinally water blocking ,this part of cable accompanied with the steel wires as the supporting part are completed with a polyethylene(PE) sheath to be figure 8 structure.
Characteristics
· High tensile strength of stranded wires meet the requirement of self-supporting
· Good mechanical and temperature performance
· High strength loose tube that is hydrolysis resistant
· Special tube filling compound ensure a critical protection of fiber
· The following measures are taken to ensure the cable watertight:
· Loose tube filling compound
· 100% cable core filling
· steel tape moisture barrier
Specification
Fiber count | 12F | |||||
SM fiber | Fiber type | G652D | Concentricity error | ≤0.5um | ||
MFD | 8.6~9.8um | Cladding non-circularity | ≤0.7% | |||
Cladding diameter | 124.8±0.7um | Fiber color | standard spectrum | |||
Loose tube | Material | PBT | Diameter | 2.2±0.1mm | ||
Water blocking system | Material | Water blocking tape | ||||
Armor | Material | Corrugated steel tape | ||||
Mental strength member | Material | steel wire | Diameter | 1.6mm | ||
Outsheath | Material | MDPE | ||||
Diameter | 3.8mmx7.5mm(±0.4)-12.5mm(±1) |
Tensile strength | Long term(N) | 600N | ||||
Short term(N) | 1500N | |||||
Crush load | Long term(N) | 600N/100mm | ||||
Short term(N) | 1500N/100mm | |||||
Bending radius | Dynamic | 20D | ||||
Static | 10D |
![]() |

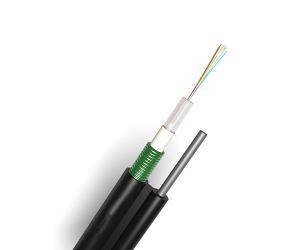

Underground Underwater Gyfty Fiber Optic Cable Crush Resistance Flexibility Images |
