GYFTY53 Custom Fiber Optic Cable Single Sheath Armored Fiber Optic Cable

Brand Name : Yiyuan

Certification : ISO 9001;ISO 14001;OHSAS 18001

Place of Origin : China

MOQ : 1KM

Price : Negotiation

Payment Terms : T/T, Western Union

Supply Ability : 500000km/month

Delivery Time : 30 working days after received your payment

Packaging Details : Wood coil strand

Product Name : Custom Fiber Optic Cable

Number of Cores : 4-144 core

Keyword : Custom Fiber Optic Cable

OEM : Accepted

Application : Outdoor Duct, Outdoor Aerial

Jacket material : PE PVC

Installation : Self-supporting Aerial

Package : Wood coil strand

Contact Now

GYFTY53 Custom Fiber Optic Cable Single Sheath Armored Fiber Optic Cable

GYFTY53 direct buried Steel armoured cables

1. Cable structure

2. Cable Type: OFC-Armored GYFTY53 .652D-Direct buried -HDPE

Technical Characteristics

In the GYTY53 cable, single-mode/multimode fibers are positioned in the loose tubes, the tubes are filled with water blocking filling compound.Tubes and fillers are stranded around the strength member into a circular cable core. Then the cable is completed with a PE sheath. Which is filled with the filling compound to protect it. After PSP is applied over the inner sheath, the cable is completed with a PE outer sheath.

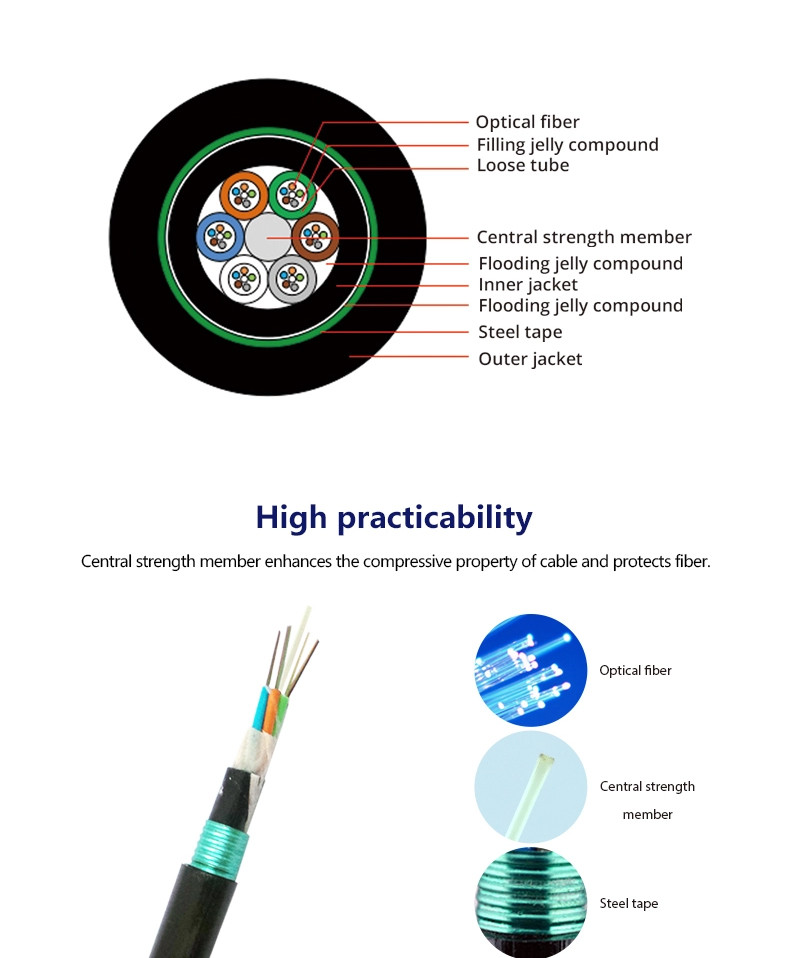

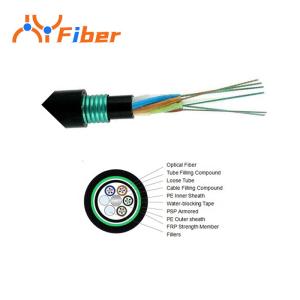

Construction:

1. Optical Fiber

2. Tube Filling Compound

3. Loose Tube

4. Cable Filling Compound

5. PE Inner Sheath

6. Water-blocking Tape

7. PSP Armored

8. PE Outer sheath

9. Steel Wire Strength Member

10. Fillers

Dimension and Properties

Fiber count 2-8 12 24 36 48 72 96 144
Max. No of loose tube / filler No. 1/5 2/4 4/2 6/0 4/2 6/0 8/0 12/0
Fiber No. per tube 6 12
Loose tube diameter 2.0mm 2.2
Central strength member diameter (FRP or steel wire ) 2.0mm 2.4mm PE+FRP
Outer sheath thickness 1.8mm
Cable OD mm 9.0 9.0 9.0 10.0 10.8 11.5 13.3 17.5
Cable weight kg/km 130 130 135 135 145 150 160 185
Operation temperature range -40 d℃ to + 70 ℃
Installation temperature range -40 ℃ to + 70 ℃
Transport and storage temperature range -40 ℃ to + 70 ℃

GYFTY53 Custom Fiber Optic Cable Single Sheath Armored Fiber Optic CableGYFTY53 Custom Fiber Optic Cable Single Sheath Armored Fiber Optic Cable
